    Zinc Plated M12 Serrated Class 4 Hexagon Flange Nut DIN6923

    Ask Lasest Price
    Brand Name : PM
    Model Number : M6-M64, 1/4"-4"
    Certification : ISO
    Price : USD 0.0015-2 PER PCS
    Payment Terms : L/C, T/T
    Supply Ability : 500tons per month
    Delivery Time : 15-25DAYS PER CONTAINER
    • Product Details
    • Company Profile

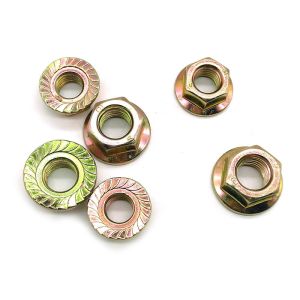

    Zinc Plated M12 Serrated Class 4 Hexagon Flange Nut DIN6923

    zinc plated M12 serrated class 4 DIN6923 hex flange nuts


    A flange nut is a hex nut with an enlarged circular base flaring out from the bottom of the nut, which acts as an integrated, non-spinning washer. Flange nuts are commonly used to speed up assembly operations or in areas where their larger bearing surface can cover oversized holes or slots The additional bearing surface also serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage or to loosen. This makes it useful when used with softer materials.

    Standard: DIN6923.IFI145

    Size: 1/4”-3”, M5-M64
    Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass

    Grade: SAE J995 Gr.2,5,8; CL4, 5, 6, 8, 10, 12

    Thread: M, UNC, UNF,BSW
    Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.

    Nut SizesWidth Across FlatsThickness
    #60.312"0.171"
    #80.344"0.203"
    #100.375"0.219"
    1/4"0.438"0.236"
    5/16"0.500"0.283"
    3/8"0.562"0.347"
    7/16"0.678" REF0.386" REF
    1/2"0.750"0.458"
    5/8"0.931" REF0.555" REF
    3/4"1.091" REF0.657" REF

    Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet

    b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet

    Supply Ability:1000 tons per month

    MinimumOrder:200kgs for each specification

    Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP

    Payment :T/T, L/C , D/A , D/P , Western Union,etc

    Market:South&north Amrica/Europe/ etc.

    FAQs

    • How does a flange nut work?
    • The integrated washer of a flange nut works in the same way as a standard washer, providing a greater area to distribute the nut's pressure over the part being secured. If the flange has serrations, these serrations bite into the material installed, making the nut less likely to loosen over time due to vibrations.
    • How do you tighten a locking flange nut?
    • Like any other hex nut, you can tighten a locking flange nut with a wrench or ratchet of the appropriate size after threading it onto the end of the bolt you're installing.
    • How do you measure a flange nut?
    • Flange nuts are measured based on their internal threading, displayed as Diameter - Thread Pitch. To find a matching bolt for the nut, or vice versa, this thread size needs to match. For example, a 1/4"-20 flange nut can only be fastened onto a 1/4"-20 bolt or thread.
    • What is a hex flange nut?
    • Hex Flange Nuts are hex nuts with a wide flanged portion near one end that acts as an integrated non-spinning washer. Flange nuts are used to spread the load placed on the nut over a wider surface area to prevent damage to the installation material. They can come in serrated or non-serrated styles.
    • What does a flange nut look like?
    • A flange nut looks like a standard hex nut but with a widened bottom resembling a washer that's integrated with the nut. This gives flange nuts a slight bell shape to them.
